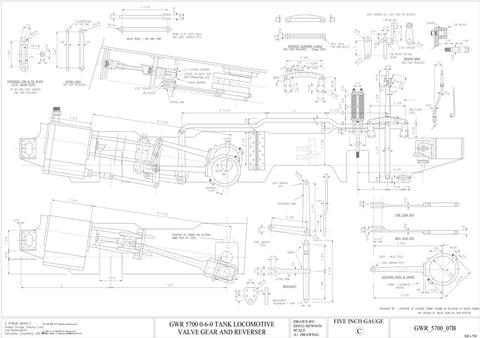

GWR 5700 Pannier Tank: Valve Gear, Reverser, and Rear Springing Arrangement Drawing

Doug Hewson drawing showing the Valve gear arrangement, reverser and rear springing arrangement for GWR 5700 0-6-0 pannier tank locomotive

Printed on order.

Size approx 129cm x 84cm (A0)
