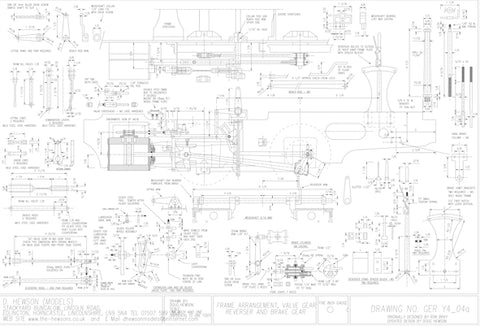

Y4: Frame Arrangement, Valve Gear, Reverser and Brake Gear Drawing

Doug Hewson drawing showing Frame Arrangement, Valve Gear, Reverser, Brake Cylinder, and Brake Gear.

Printed on order.

Size approx 129cm x 84cm (A0)
