GWR 5700 Pannier Tank: Cab Platework Arrangement Drawing

GWR 5700 Pannier Tank: Cab Platework Arrangement Drawing

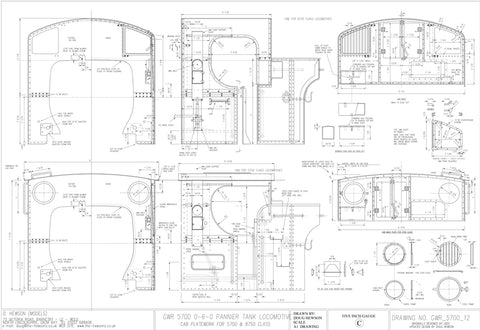

Doug Hewson drawing showing cab platework arrangement for GWR Class 5700 and Class 8750 0-6-0 Pannier Tank locomotive.

Printed on order .

Size approx 129cm x 84cm (A0)
