GWR 5700 Pannier Tank: Doug Hewson Complete Drawing set

Complete Doug Hewson Drawings set including:

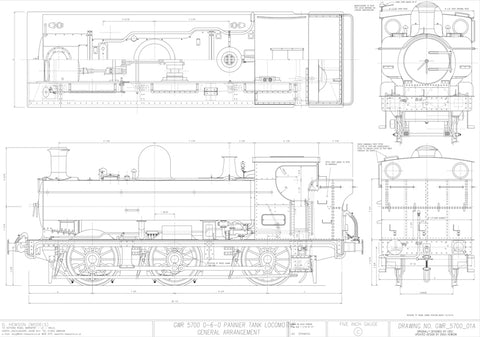

1. General Arrangement (Also available for 8750)
2. Frame Plates, Axleboxes and Arrangement
3. Frame details, Buffers, and Couplings
4. Platform Arrangement and Brake Gear
5. Sanding gear
6. Coupling rods arrangement
7. Valve gear and reverser.
8. Smokebox and super heaters
9. Tanks, top covers and details
10. Boiler arrangement
11. Coal bunker arrangement and plates (also available for 8750)
12. Cab Platework for both 5700 and 8750
13. Cab fittings and layout (also available for 8750)
14. Boiler mountings and fittings for both 5700 and 8750

Printed on order.  If you would like the 8750 versions of drawings 1, 11, and 13 - please add a note onto your order at the checkout.

Each drawing is approx 129cm x 84cm (A0)
